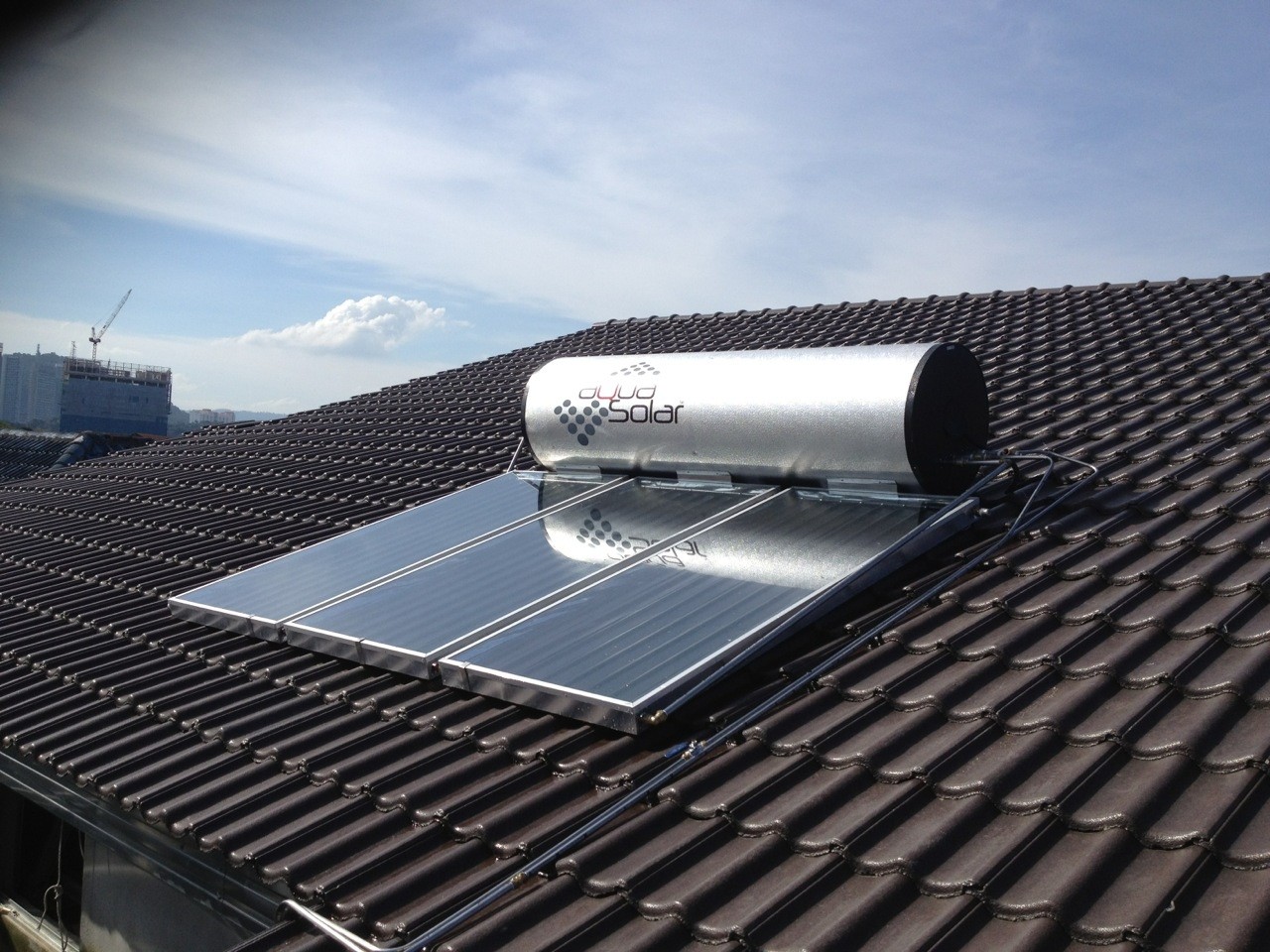

MODEL:UNIC-FP
Specifications and Details
1. Inner Storage Tank: Food-grade stainless steel SUS304-2B 1.2 mm
2. Heat-exchange Coil: No, water circulating directly
3. Tank Exterior Shell: High-quality white coated color steel 0.4 mm
4. Tank Insulation: High-density polyurethane integrated foam-forming with lasting heat preservation
5. Flat Plate Solar Collector Absorber: Ultrasonic welded aluminum,0.3mm
6. Header Pipe: All copper T2, Ø22*0.6*1060mm
7. Riser Pipe: Copper T2, Ø10mm*0.5*1890mm
8. Absorptive Coating: High selective black chrome coating coating
| Item No. | Tank | Flat Plate Solar Panel | Tank Diameter | ||
| Capacity | Size (mm) | Panel Qty | Inner Tank(mm) | Outer Tank(mm) | |
| UNIC-FP-10 | 100 L | 2000*1060*80 | 1 Pc | 360 | 460 |
| UNIC-FP-12 | 120 L | 2000*1060*80 | 1 Pc | 360 | 460 |
| UINC-FP-15 | 150 L | 2000*1060*80 | 1 Pc | 360 | 460 |
| UNIC-FP-20 | 200 L | 2000*1500*80 | 1 Pc | 360 | 460 |
| UNIC-FP-25 | 250 L | 2000*1060*80 | 2 Pcs | 360 | 460 |
| UNIC-FP-30 | 300 L | 2000*1060*80 | 2 Pcs | 360 | 460 |
